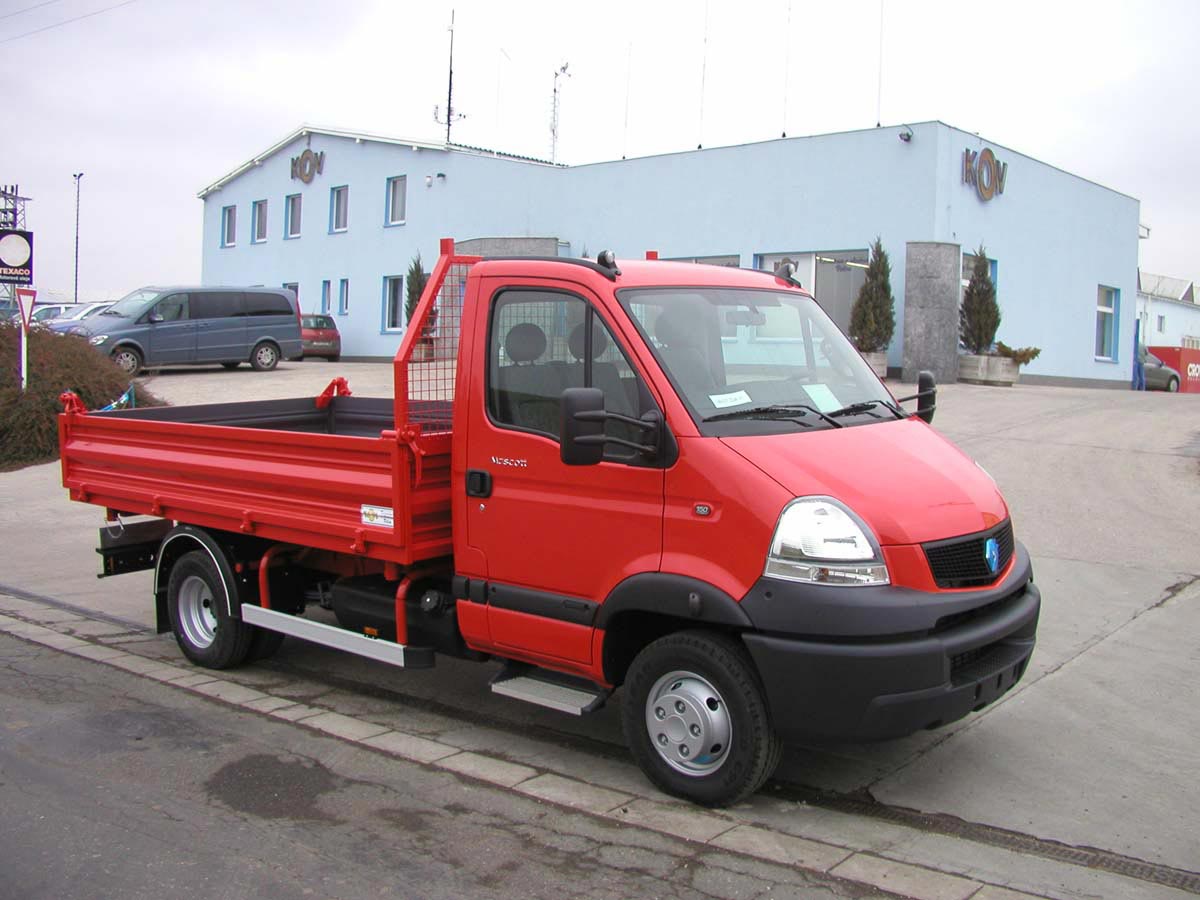

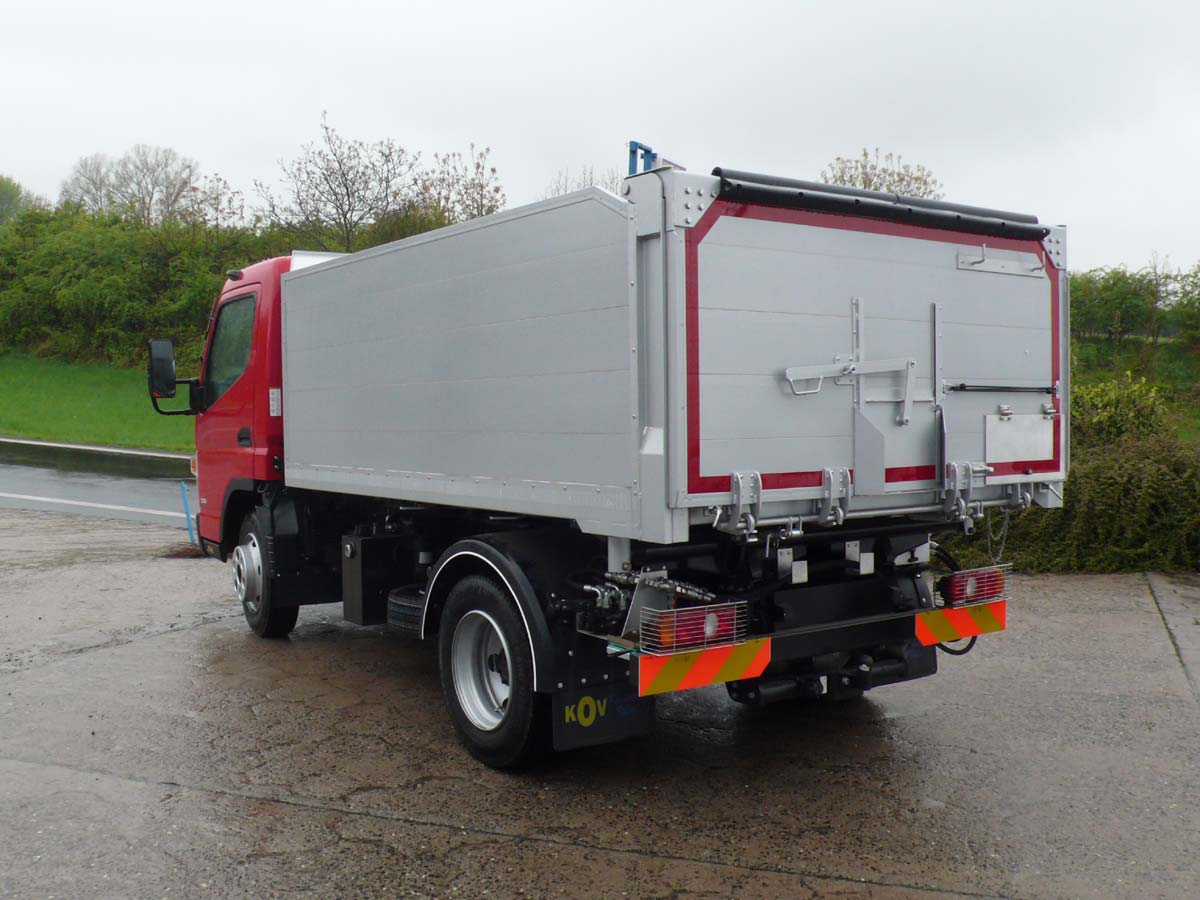

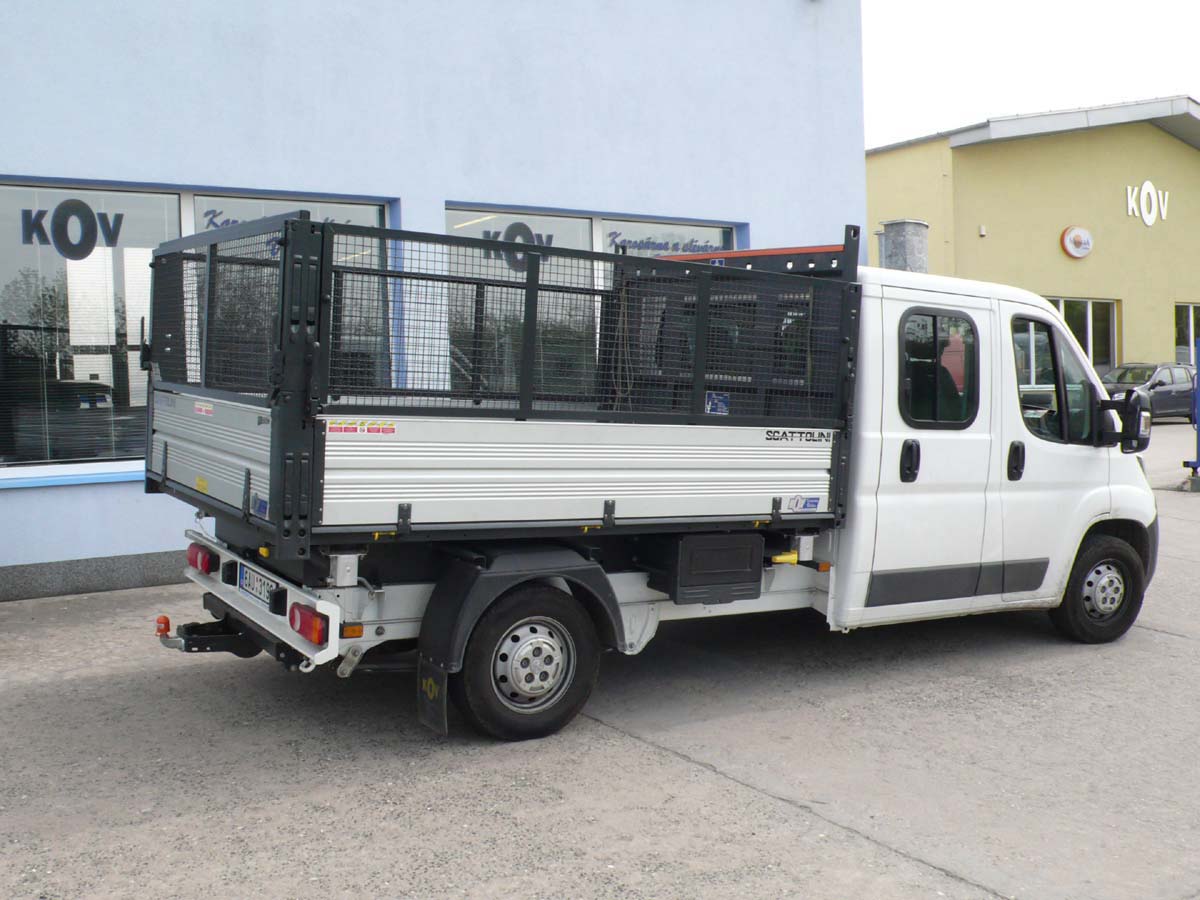

Tipper trucks
up to 5 tons

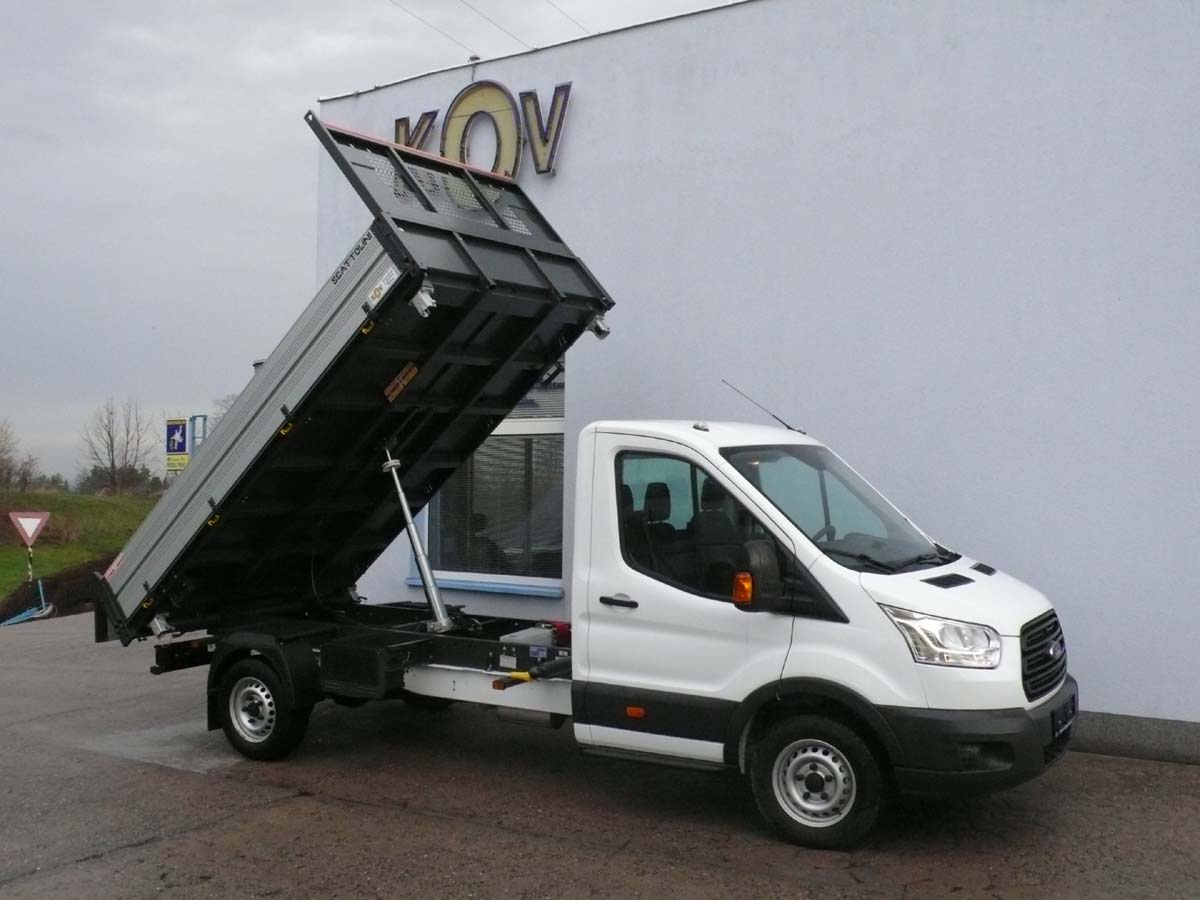

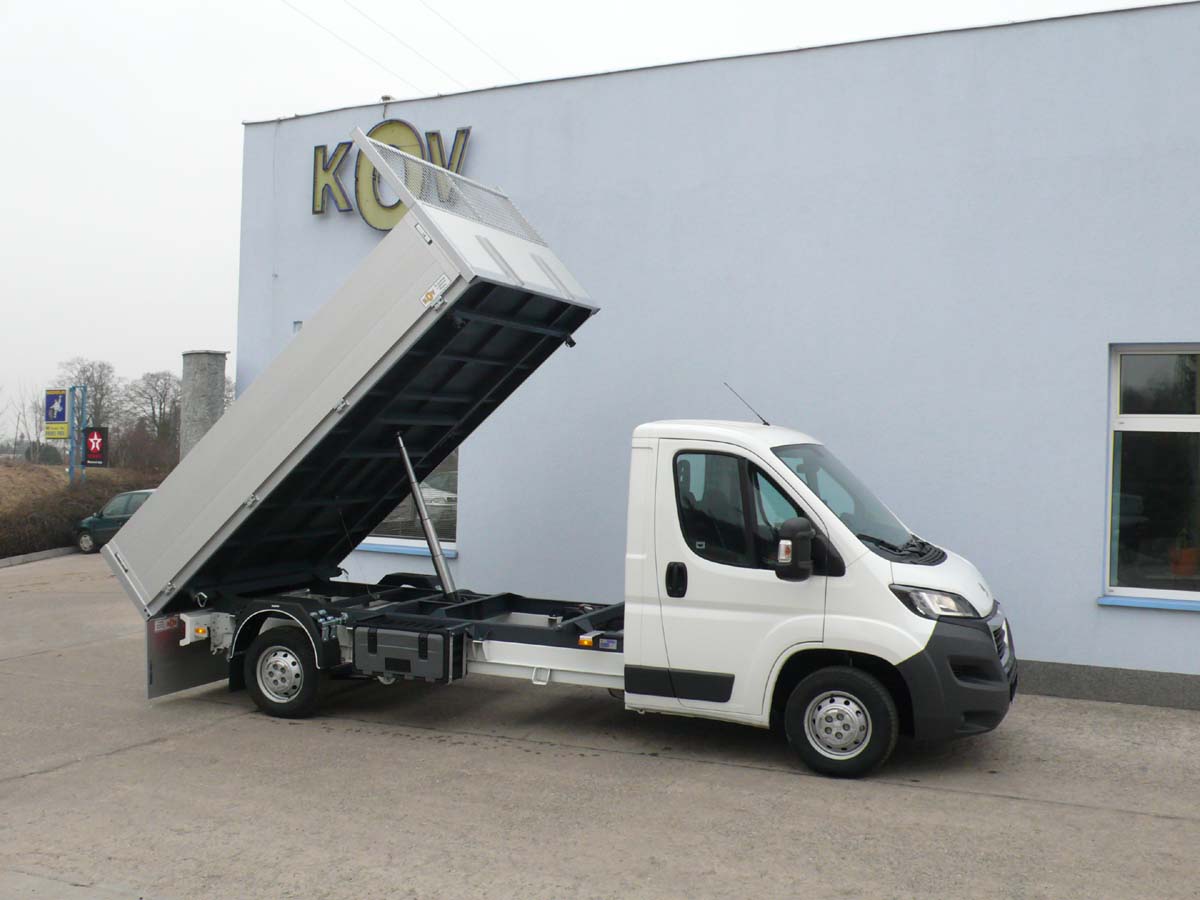

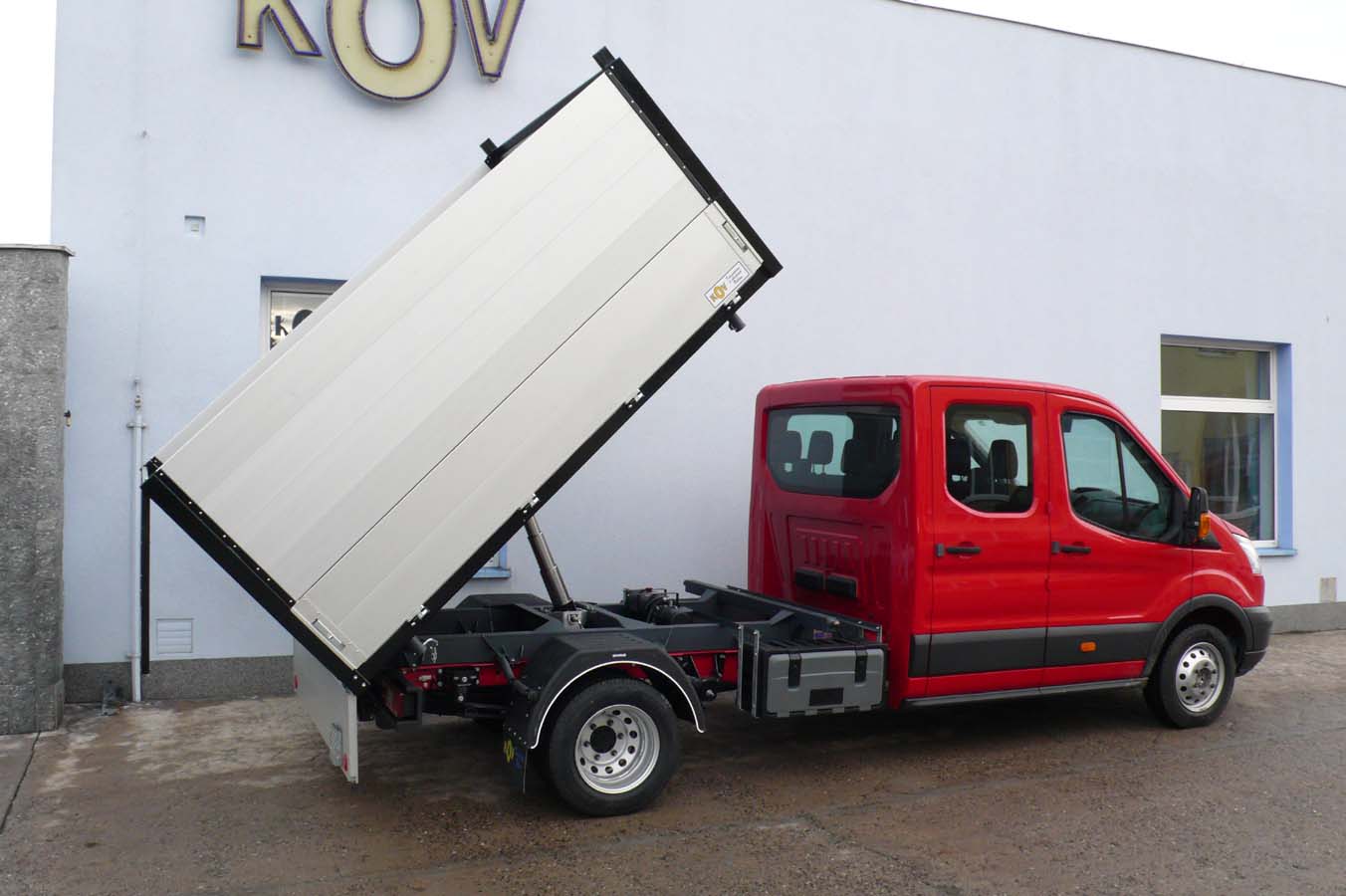

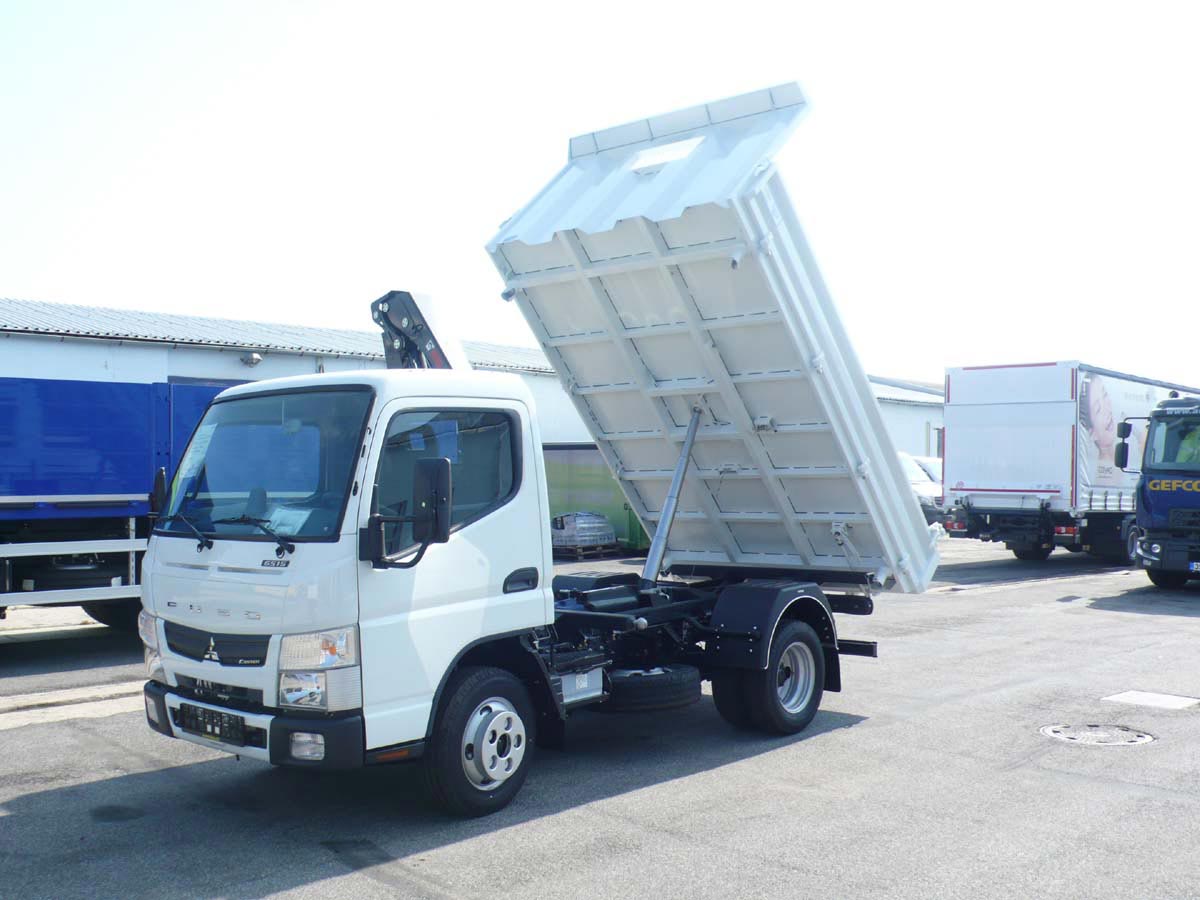

  •  The tipping body is designed for the transport of bulk materials with the possibility of folding the load into three sides and consists of four basic parts: the distribution frame, the folding bridge, the side system and the hydraulic circuit.
  • The distribution frame is firmly connected to the chassis frame and is designed as a steel weldment.
  • The main parts of the distribution frame are: longitudinal beams fitted with anchoring elements for connecting the body to the chassis frame, main transverse beams fitted with tilting body bearings, auxiliary transverse beams of the frame and diagonal stabilization.

Basic description of dump trucks up to 5 tons

The tipping body is designed for the transport of bulk materials with the possibility of folding the load into three sides and consists of four basic parts: the distribution frame, the folding bridge, the side system and the hydraulic circuit.

    The distribution frame is firmly connected to the chassis frame and is designed as a steel weldment. The main parts of the distribution frame are: longitudinal beams fitted with anchoring elements for connecting the body to the chassis frame, main transverse beams fitted with tilting body bearings, auxiliary transverse beams of the frame and diagonal stabilization.
